SGLFW2

SGLFW2-90A560AS1E

Models with F-Type Iron Cores

product_overview

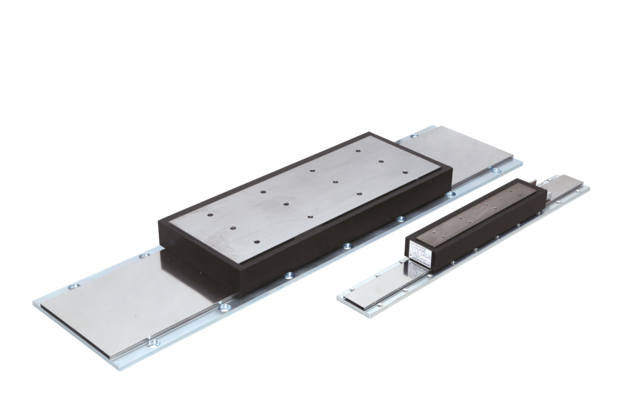

Iron core SGLFW2 linear servo motors are composed of moving coils with laminated iron-core and single-sided stationary magnet tracks. The entire coil unit is permanently encapsulated in a thermally conductive resin body to give structural rigidity. The magnet track is made of a row of magnets accurately placed on one side of the nickelized steel carrier plate. Stainless steel magnet covers guard against minor accidental damage to the magnets.

product_technical_details

Input Power Supply
200 V

Core Type
With F-Type Iron Core

Moving Coil/Magnetic Way
Moving Coil

Magnet Height
90 mm

Length
560 mm

Sensor
With Polarity Sensor and Thermal Protector

Cooling Method
Self Cooled

Rated Force
1680 N

Instantaneous Peak Force
5040 N

Height
90 mm

Width
595 mm

Depth
120 mm
